Slitting machine for rubber and tire

Range of versatiles and compacts slitting machines to match your production needs!

Stock preparation is a critical aspect of a tire manufacturing. Between calendering and Tire Building Machines, slitting is very important for final product quality and process reliability. To answer these requirements, we have developped a range of slitting machines with prcise tension control and adapted cutting systems. Our range of tire slitter rewinders consists in many models depending your productivity needs and stock preparation workshop. 3 off-line tire slitter models and 1 in-line model:

  • Tire slitter Mini Orion G: for fragile and narrow materials
  • The famous Orion G: for larger rewinder diameters
  • Our Saturne: high capacities slitting machine to convert calendered textile in rolls
  • But also the Unishaft®, our latest innovation to reduce handling risks and downtimes

Off-line slitting machine main characteristics

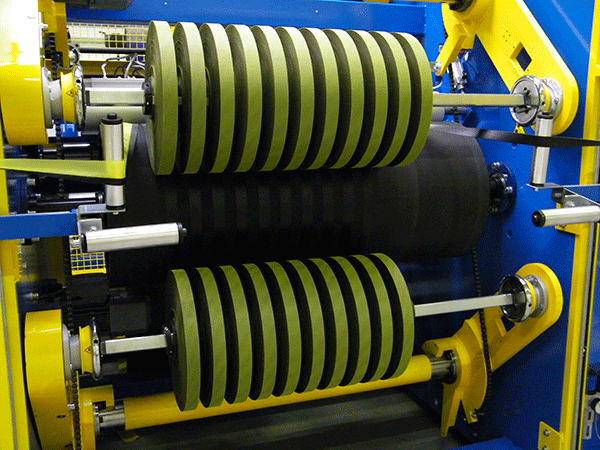

Slitter Mini Orion G type:

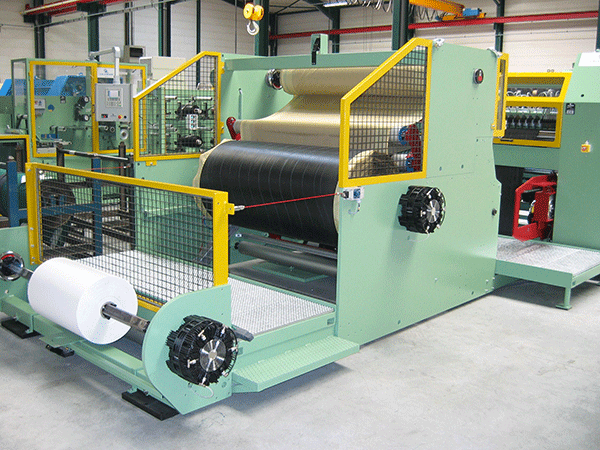

  • Mother roll: Maxi width 1 000 mm | Maxi Ø 700 mm (integrated unwinder) or 1 200 mm (separated unwinder)
  • Pads: Maxi width 700 mm | Maxi weight 350 kg per shaft
  • Speed: Up to 100 m/min
  • Mini. slitting width:
    • 15 mm with crush cutting
    • 20 mm with shear cutting
    • 60 mm with razor blades

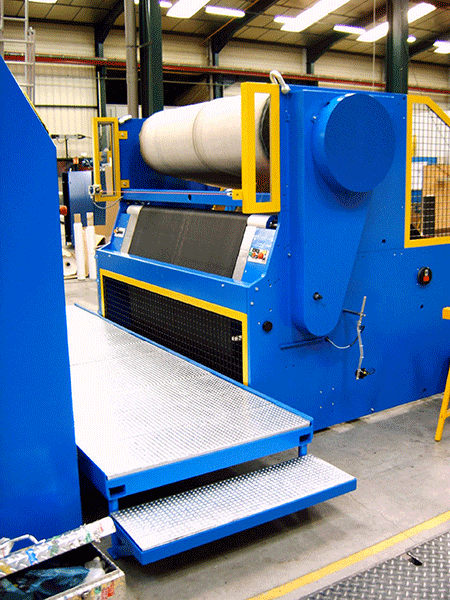

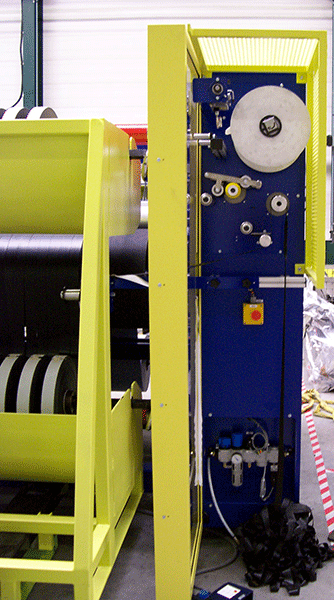

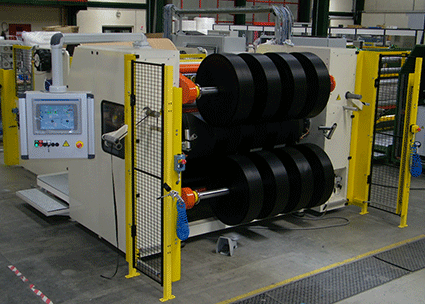

Slitter Orion G type:

  • Mother roll: Maxi width 1 600 mm | Maxi Ø 1 400 mm | Maxi weight 1 400 kg
  • Pads: Maxi width 800 mm | Maxi weight 350 kg per shaft
  • Speed: Up to 120 m/min
  • Mini. slitting width:
    • 15 mm with crush cutting
    • 20 mm with shear cutting
    • 60 mm with razor blades

Slitter Saturne type:

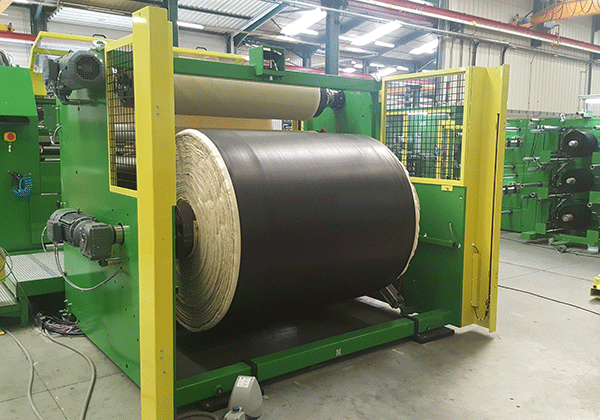

  • Mother roll: Maxi width 1 600 mm | Maxi Ø 1 400 mm | Maxi weight 2 600 kg
  • Pads: Maxi Ø 1 300 mm | Maxi weight 1 400 kg per shaft
  • Speed: Up to 100 m/min
  • Mini. slitting width: 100 mm (depending on rewinding Ø and product)

Unishaft®

Patented solution for optimal handling between large tire slitter rewinder and spooling machines! Ask us for more information

Slitting machine Applications

  • Calendered textile
  • Gum
  • calendered bias textile
  • Textile liner
